220V-240V 20A electric Street Light Timer, Din Rail Timer Switch SUL180/THC-15/TBS...

This series of time switch are smaller wall mounting type of time switch, the unit can be mounted in the indoor or outdoor enclosure.

Frequency

50-60 Hz

Operating Voltage

110-240 V AC

Time accuracy

≤ ± 2 s/day(Quartz)

Ambient temperature

-10 °C ~ +50 °C

Max Current

20A

Max Voltage

240VAC

Price range: $10.50 – $20, Stock: More than 1000pcs.

Production Process

Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.

Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing

Details about 220V-240V 20A electric Street Light Timer, Din Rail Timer Switch SUL180/THC-15/TBS...

(Last Updated On: 2020年7月15日)

SUL180 mechanical Timer 16A 110V 250V timer switch

Technical data:

Type Sul180
Auxiliary power supply 220-240VAC±10% 45/60Hz
Switching contact 16(4)A 250VAC
Burden 0.5W
Precision ±3sec/day at 22
Back-up time 100 hours
Type of dial Daily 96 pins
Minimum setting interval Daily 15 minutes
Temperature Working -10℃~+50 storage -25℃~+70
Manual operating switch 2 positions: ON-Automatic
Movement quartz
Protection degree IP20 as per EN60529
Protection class II as per EN60335 under correct assembling conditions
Standards IEC669-1;EN60730

 Outline dimension:



SUL180 mechanical Timer 16A 110V 250V timer switch

Wiring connection diagram:

SUL180 mechanical Timer 16A 110V 250V timer switch

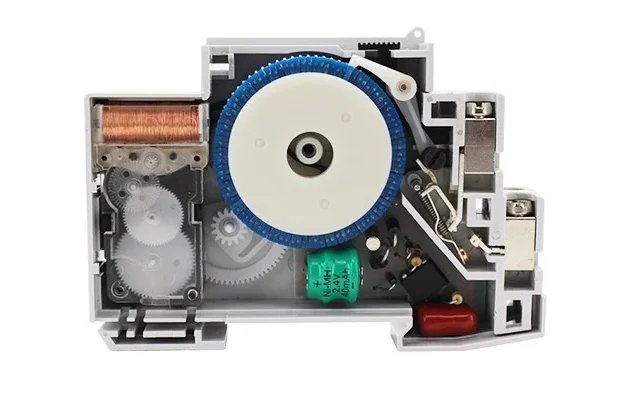

Internal structure:

SUL180 mechanical Timer 16A 110V 250V timer switch

THC-15 16A 110V Relay Digital LCD Power Programmable Timer Time Switch

Roey Programmable Digital Timer makes it easy to set all your indoor or outdoor electric devices, including lights and hydroponic equipment. Save time and energy by programming your equipment to turn on only when you need it.

 Features:



  • Rated Voltage: 110V AC; Contact Capacity: 16A
  • Full-Time Range: 1Min-168Hours; Programmable: 17times/week or day
  • Internal battery: 1.2V/40mA (rechargeable batteries)
  • Power failure memory: 60days; Operate Temperature: -20 to +55℃
  • Net weight: 120g

Technical data:

Operation voltage AC220V,110V,DC12V 24V
Frequency 50/60Hz
Model THC-1516 THC-1520 THC-1530
AC switching capacity resistive load 16A 20A 30A
inductive load 8A 10A 15A
Accuracy ±1s/day at 20 ℃
Power Reserve 60 days
Power Consumption ≤7.5VA
Switching Contact 1 Changeover switch
Min Interval time 1 Min
No.of program 17 groups
Installation Type Din Rail Mounting
Ambient Temperature -20 ~ +55℃

Dimension:

THC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time Switch

Wiring Diagram:

THC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time Switch

Product Overviews

THC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time SwitchTHC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time SwitchTHC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time SwitchTHC-15 16A 110V/220V Relay Digital LCD Power Programmable Timer Time Switch

The TBS analog time switch

The TBS analog time switch is a smaller wall mounting type of time switch, the unit can be mounted in the indoor or outdoor enclosure.

Description

– Analogue time switch
– 24-Hour applications
– Finger-safe terminals
– 1 channel
– Switching status display
– Quartz controlled
– Shortest switching time:15 minutes
– 96 switching segments
– With power reserve (Nickel metal hydride battery replacement )
– Clock hands for time display
– Simple summer/winter time correction

Applications
– Billboard or Showcase lighting
– Air-condition or Commercial Refrigeration
– Pumps/Motor/Geyser/Fan Control
– Hydroponic Systems
– Wastewater Treatment Systems
– Generator Exercising
– Boilers / Heater Control
– Pool & Spa

Technical Data

Operating voltage 110-230 V AC
Frequency 50-60 Hz
Number of channels 1
Width 5 modules
Installation type Wall / DIN-rail / enclosure
Type of connection Screw terminals
Drive Quartz-controlled stepper motor
Program Daily program
Power reserve 300 hours
Max. switching capacity at 250 V AC, cos φ = 1 20 A
Max. switching capacity at 250 V AC, cos φ = 0.6 12 A
Incandescent/halogen lamp load 2300W
Motor load(cos∅=0.7) AC110.750W   AC220V.1500W
Fluorescent lamp load (conventional) parallel-corrected 1300VA 70uF
Shortest switching time 15 min
Programmable every 15 min
Time accuracy at 25 °C  ≤ ± 2 s/day(Quartz)
Switch type SPDT
Contact type Not potential-free
Number of switching segments 96
Power consumption 3 VA
Test approvals CE
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II in accordance with EN 60730-1
Ambient temperature –10 °C … +50 °C



Connection Example

ALION TBS 220V-240V 20A electric Street Light Timer, Din Rail Timer Switch
