| Display mode | 4-bit digital tube LED display; automatic decimal point shift |
|---|---|
| Overload | Permanent: 1.2 times; temporary: 2 times/10s |
| Frequency | 45-65Hz |
| Dimension | 72/80/96/120 |
| Output Voltage | 0-400VAC |
| Operating Temperature | -10~+55℃ |
| Measuring Energy Range | 0–999999KVA |
| Material | ABS |
| Pover Consumption | <5VA |
Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.
Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing
| Product name | Display method | Specification(mm) | ||||
| Three-phase multifunction | LCD | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase voltage | LCD | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase current | LCD | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase voltage and current | LCD | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase voltage | LED | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase current | LED | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase voltage and current | LED | 72×72 | 80×80 | 96×96 | 120×120 | |
| Three-phase multifunction | LED | 72×72 | 80×80 | 96×96 | 120×120 | |
| Single-phase multifunction | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase voltage | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase current | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase voltage and current | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase power | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase power factor | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |
| Single-phase frequency | LED | 96×48 | 72×72 | 80×80 | 96×96 | 120×120 |

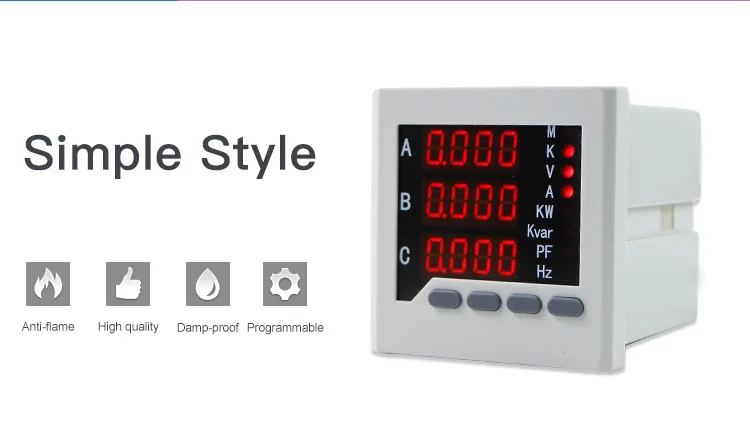

LED multifunctional meters can accurately measure and display all the common electrical parameters of a three-phase power grid, such as three-phase voltage and current, active power, inactive power, power factor, frequency, active energy, reactive energy, communication interface, and energy pulse output function. with MODBUS-RTU communication protocol, the meter can display by RS-485 remote digital communication. With features of convenient installation, easy wiring and maintenance, programmable at site etc.the meters can also proceed the networking communication between different PLC and industrial control computers among the industry
| Wiring | Three-phase |
| Rated current | AC5A |
| Rated voltage | 0-500VAC or 0-100VDC |
| Overload | Permanent: 1.2 times; temporary: 2 times/10s |
| Accuracy | Class 0.5 |
| Frequency | 45-65 Hz |
| Operation range | AC400V |
| Working range | AC 80V~270V,AC 220V,AC 380V,AC 100V |
| Power consumption | ≤ 5VA |
| Communication | RS-485, MODBUS-RTU protocol |
| Working temperature | -10~+55℃ |
| Relative humidity | ≤93 %, in the place without corrosive gas |
