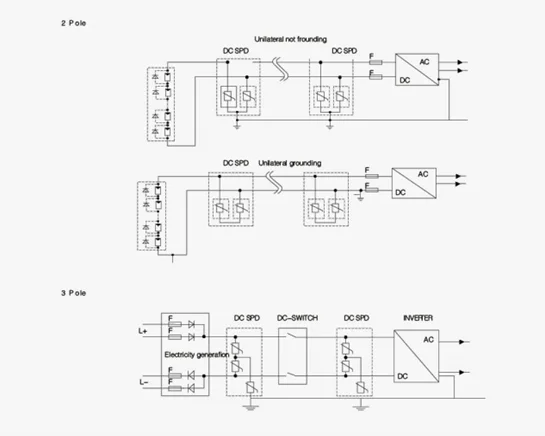

G20-PV DC surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC500V, 800 v, 1000 v. Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.
| Product name | Solar cell SPD |
|---|---|
| Voltage | DC600V, DC800V, DC1000V, |
| Cable Standard | 2.5mm2 4.0mm2 6.0mm2 10.0mm2 |
| Function | used to solar panel |
| Poles | 1P,2P,3P,4P |
| Up | ≤3.6kV |
Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.
Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing
|
G20-PV Series Surge Protector
|
G20-PV
|
G20-PV
|
G20-PV
|
|
|
UCPV (V DC)
|
1000V
|
1200V
|
1500V
|
|
|
Max System Discharge Current (8/20 μs) [Imax]
|
40kA
|
40kA
|
40kA
|
|
|
Voltage Protection Level [UP]
|
≤4.0kV
|
≤4.5kV
|
≤4.5kV
|
|
|
Voltage Protection Level at 5kA [UP]
|
≤3.6kV
|
≤4.0kV
|
≤5.0kV
|
|
|
Integrated Fuse Breaking Capacity/Interrupting Rating
|
40kA/1000Vdc
|
40kA/1200Vdc
|
40kA/1500Vdc
|
|
|
Technology
|
Short-Circuit Interruption (SCI) Overcurrent Protection
|
|||
|
Operating Temperature Range [TU]
|
-40°C to +80°C
|
|||
|
Nominal Discharge Current (8/20 μs) [(DC+/DC-) –> PE] [n]
|
20kA
|
|||
|
Response Time [tA]
|
<25ns
|
|||
|
Operating State/Fault Indication
|
Green (good)/Red (replace)
|
|||
|
Conductor Ratings and Cross-Sectional Area
|
Min
|
60/75°C 1.5mm2/14AWG Solid/Flexible
|
||
|
Max
|
60/75°C 35mm/2AWG Stranded/25mm2/4AWG Flexible
|
|||
|
Mounting
|
35mm DIN Rail per EN 60715
|
|||
|
Enclosure Material
|
UL 94V0 Thermoplastic
|
|||
|
Degree of Protection
|
IP20
|
|||
|
Capacity
|
3 Modules, DIN 43880
|
|||
|
Standards Information
|
IEC 61643-31 Type 2, IEC 61643-1 Class II
|
|||
|
Warranty
|
Five Years
|
|||

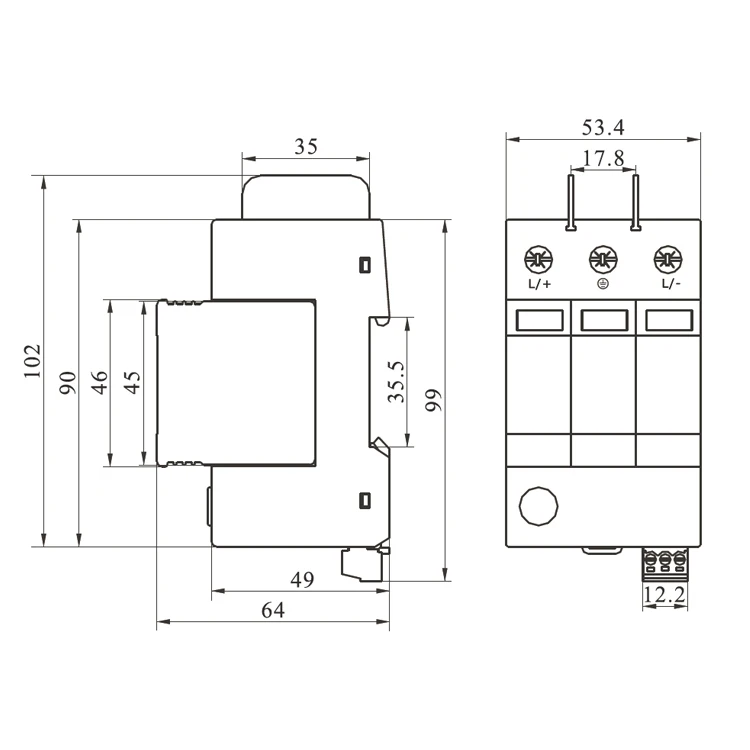

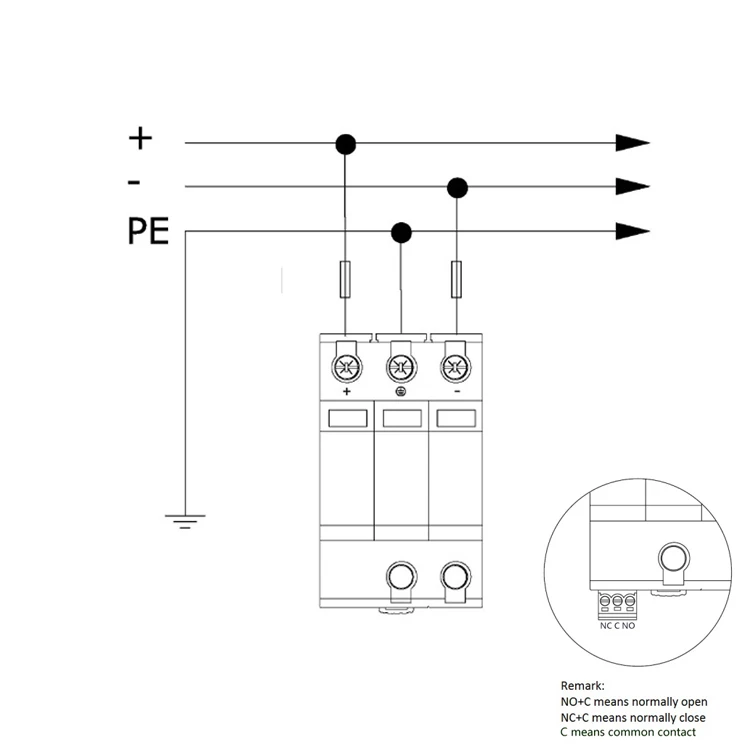

Dimension |
