Din rail adjustable automatic over under voltage protective protector relay

The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. Its protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and persons.

Model Number

XHD5-DT

Usage

SVC

Phase

Single Phase, 2P

Rated Frequency

50Hz/60Hz

Overvoltage value

230V-280V

Undervoltage value

160V-210V

Rated Current

1A-63A

Warranty

3 years

Recovery time

1S-300S

Display

Double LED

Max Loading power

4.4kVA 6.6kVA 8.8kVA

Price range: $4.50 – $20, Stock: More than 1000pcs.

Production Process

Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.

Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing

Details about Din rail adjustable automatic over under voltage protective protector relay

(Last Updated On: 2020年8月11日)

Product Description

The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. Its protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safety of electrical equipment and persons.

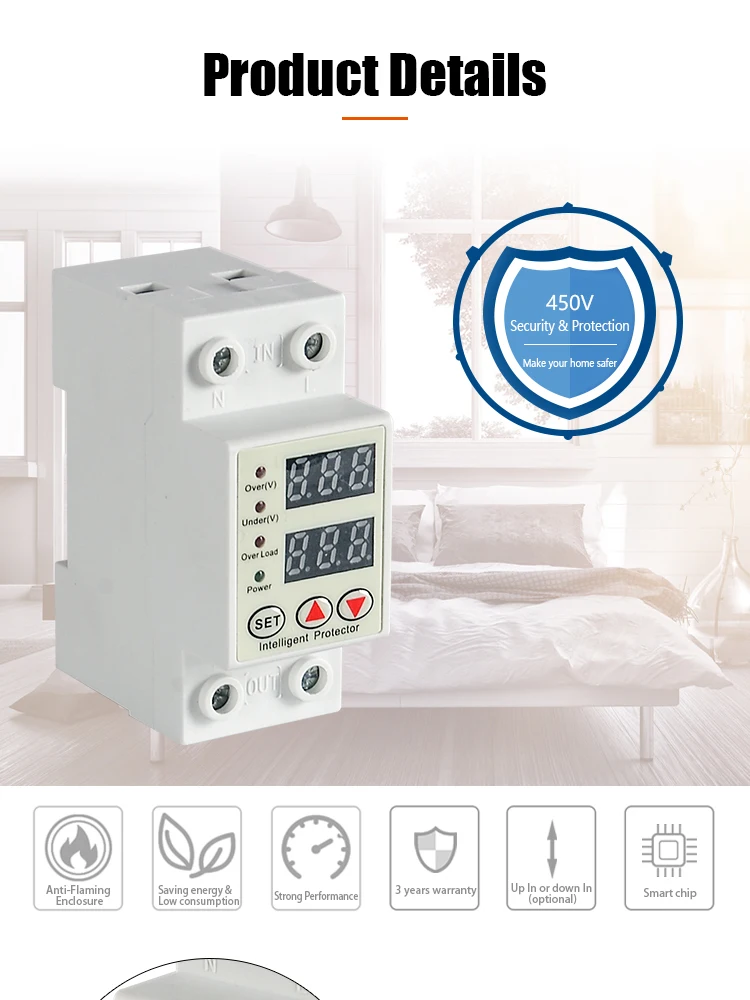

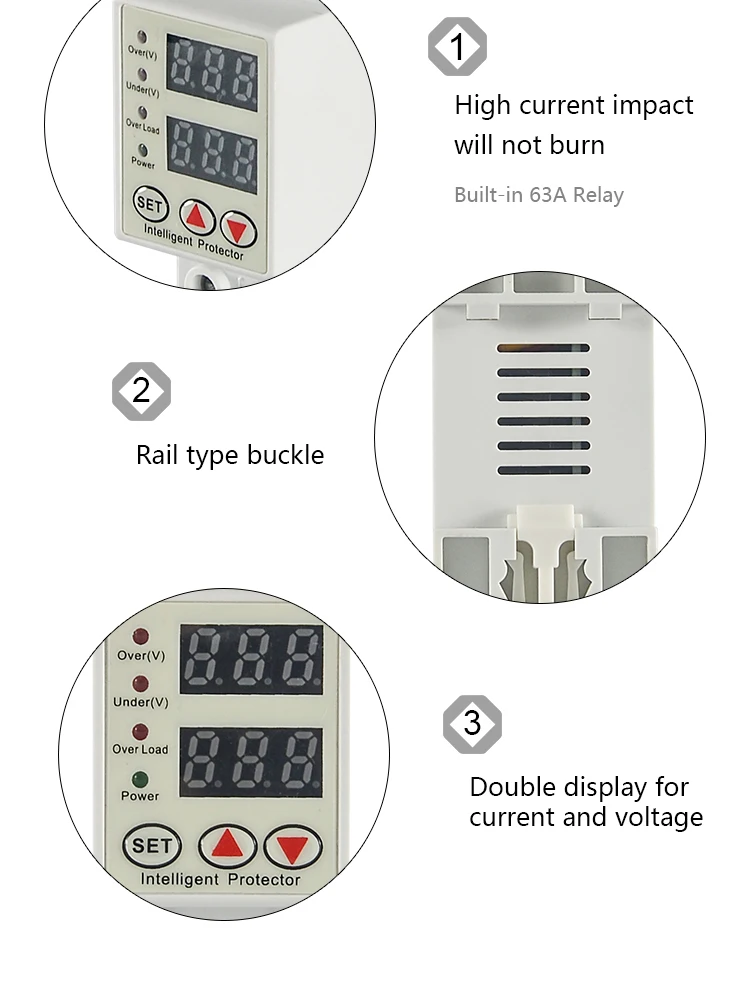

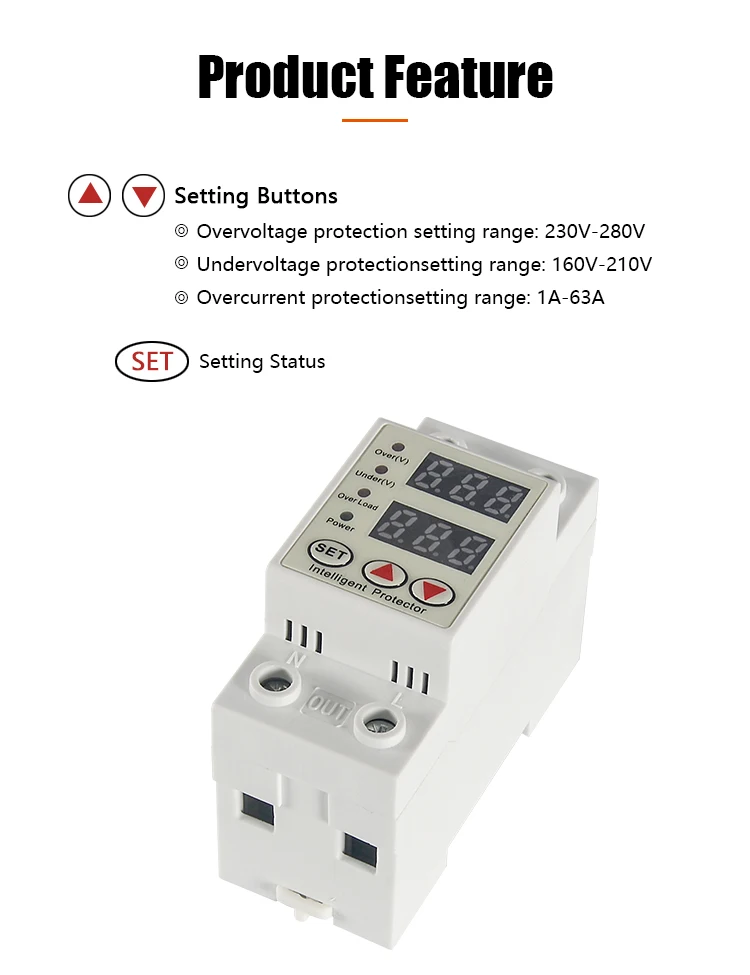

Product Details

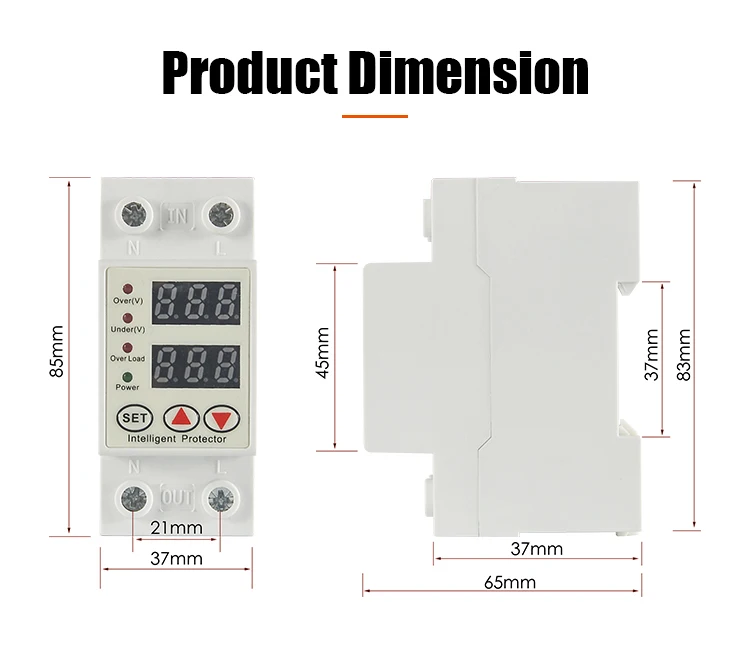

Product Dimension



Wiring Diagram

Technical parameter



Model Single Phase
XHD5-ON XHD5-OR XHD5-OB XHD5-DT XHD5-DF
Display Single LED Single LED Single LED Double LED Double LED
Adjustment Non Rotary switch 2*Buttons 3*Buttons 4*Buttons
Rated Current 1A-40A/41A-63A 1A-63A
Rated Voltage 220VAC/230VAC
Rated Frequency 50Hz/60Hz
Overvoltage Value 275V±5V 235V-275V (Default: 275V) 230V-280V (Default: 275V) 230V-280V (Default: 280V) 230V-300V (Default: 280V)
Undervoltage Value 160V±5V 160V-200V (Default: 180V) 140V-210V (Default: 165V) 160V-210V (Default: 160V) 140V-210V (Default: 140V)
Overcurrent Value 1A-40A (Default: 5A) / 1A-63A (Default: 20A) 1A-63A (Default: 63A)
Recovery Time The 30s 1s~300s (Default: 30s) 1s-600s (Default: 30s)
ON/OFF × × × ×
Specification Overvoltage value, Undervoltage value & Recovery time can be customized Recovery time can

be customized. The Overvoltage value & Undervoltage value can be adjusted.

Overvoltage value, Undervoltage value & Recovery time can be adjusted.
Adjustment Unit   5V  1V/1S
