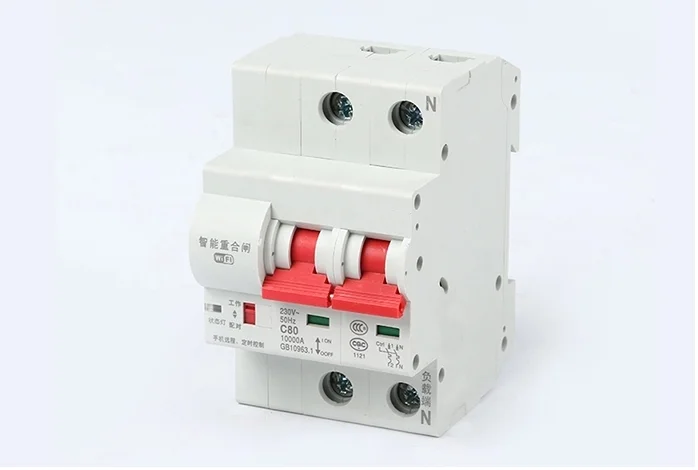

Intelligent Smart WiFi Mini Circuit Breaker Automatic Switch Overload Short Circuit Protection 1-4P

The WIFI intelligent recloser circuit breaker can be widely used in household, factories, farmland, and can intelligently remote control water pump, water heater, underfloor heating equipment, etc

Poles Number

1P,2P,3P,4P

Rated voltage

AC230V (1P-2P) /AC400V(3P-4P)

Rated Current

125A 100A 80A 63A 40A 32A 25A 20A 16A

Breaking capacity:

6000A

Class of pollution

Level 2

Wifi Frequency

2.4G Hz 802.11b/g/h

Feature

WiFi Smart Circuit Breaker With Energy Monitoring

Price range: $28.50 – $20, Stock: More than 1000pcs.

Production Process

Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.

Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing

Details about Intelligent Smart WiFi Mini Circuit Breaker Automatic Switch Overload Short Circuit Protection 1-4P

(Last Updated On: 2020年11月25日)

Application

The WIFI intelligent recloser circuit breaker can be widely used in household, factories, farmland, and can intelligently remote control water pump, water heater, underfloor heating equipment, etc

Function

The wifi circuit breaker is suitable for 50Hz/60Hz, 230/400V  0~125A circuit which has the function such as overload protection, short-circuit protection, and isolating protection. Meanwhile, this intelligent reclosing circuit breaker has the function as switched oof/on the globally remote control by smart cell phone.

Feature

  • Remote control at any time from anywhere
  • voice control with Amazon Alexa and Google home
  • overload and short circuit protection
  • over-voltage and under-voltage protection
  • timely switch on/off
  • time delay switch on/off
  • cycle switch on/off
  • better signal

    Specifications

    Standards
    GB10963.1; IEC60898-1,GB/T21706
    Certificate
    CCC,  CE, UL
    Rated voltage
    AC230V (1P-2P) /AC400V(3P-4P)
    Breaking capacity
    6000A
    Rated frequency
    50HZ
    Pole number
    1P 2P 3P 4P
    Class of pollution
    Level 2
    Protection level
    IP20
    Rated current
    125A 100A 80A 63A 40A 32A
    Rated impulse withstand voltage
    6KV
    Specified service temperature
    -25℃〜+ 65℃
    Mechanical life
    > 10000 times
    Electrical life
    > 6,000times
    Instantaneous Trip Type
    C
    Rated current
    In (A)
    Temperature compensation coefficient under various operational temperature
    -10℃
    0℃
    10℃
    20℃
    30℃
    40℃
    50℃
    55℃
    60℃
    63
    1.28
    1.21
    1.14
    1.07
    1.00
    0.84
    0.87
    0.85
    0.82
    80
    1.22
    1.16
    1.11
    1.05
    1.00
    0.95
    0.91
    0.88
    0.86
    100
    1.22
    1.18
    1.11
    1.05
    1.00
    0.95
    0.91
    0.88
    0.88
    125
    1.22
    1.16
    1.11
    1.05
    1.00
    0.95
    0.91
    0.88
    0.86



    Wifi Remote control mcb Smart circuit breaker with antenna signal 1P smart wifi circuit breaker
