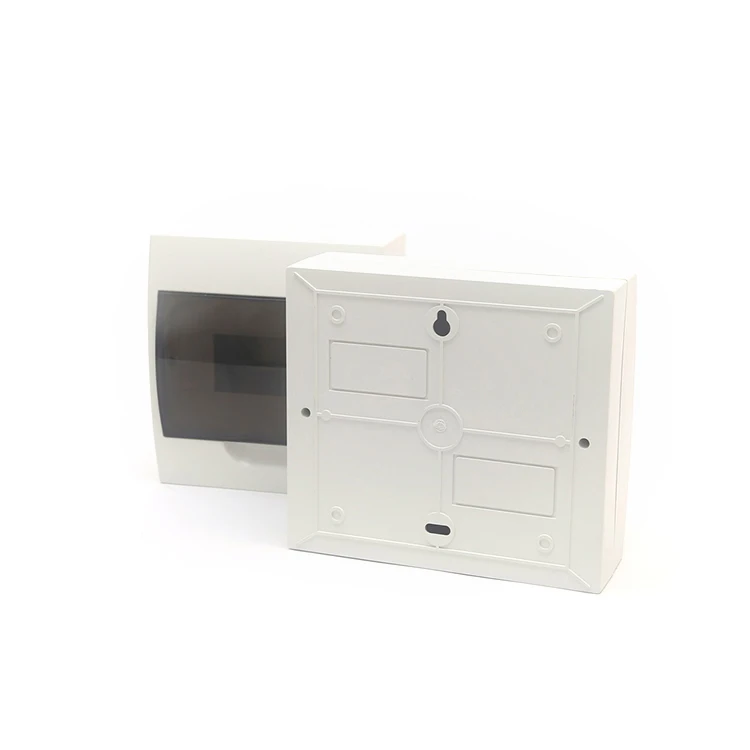

Plastic circuit breaker 12 way switch electrical distribution box

The Distribution Box applies to the terminal of AC 50/60Hz .rated operation voltage up to 400V and rated current up to 63A. design with plastic base and transparent cover all in permanent color. All raw materials were in standard with flame retardant and pollution degree no 2. there are 2 type choices of concealed mounted and open mounted and design with single row, double row and three rows. Equipped with various modular electric for functions of electric energy distribution, control, protection, signal, measurement of the terminal electric appliance.

Color

White/Grey, White/Grey

Material

Plastic/HIPS,ABS,ABS-UV

Window

Transparent or Opaque

Mechanical Life

10000 Times

Certificates

CE, RoHS, HF, IK08 Approved

Product Name

flush mount Circuit breaker distribution box

Price range: $2.15 – $20, Stock: More than 1000pcs.

Production Process

Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.

Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing

Details about Plastic circuit breaker 12 way switch electrical distribution box

(Last Updated On: 2020年7月23日)

Product Description

The Distribution Box applies to the terminal of AC 50/60Hz .rated operation voltage up to 400V and rated current up to 63A. design with plastic base and transparent cover all in permanent color. All raw materials were in standard with flame retardant and pollution degree no 2. there are 2 type choices of concealed mounted and open mounted and design with single row, double row and three rows. Equipped with various modular electric for functions of electric energy distribution, control, protection, signal, measurement of the terminal electric appliance.

Specification

*High impact resistance material: HIPS, ABS, ABS-UV Fire Resistant
*Automatically open and a lock of the lid, control by pressing the on-off button on the cover
*Safe and full material copper terminal

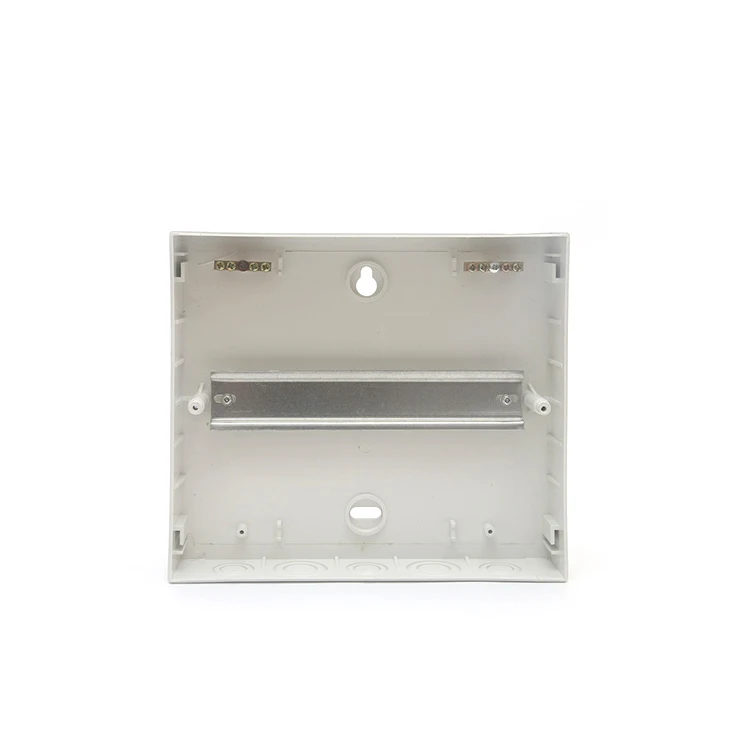

*Adjustable din-rail: move ascend and descend
*Ultra-large space box for moving and easy wiring
*Flush-mounting and surface mounting available
*Function of Distribution box: leakage of electricity, overload, short-circuit.
*Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings, etc
