single phase analog and digital LCD display wireless kwh energy meter

The meter is designed to measure single-phase two-wire AC active energy. The meter complies with the relative technical requirements for the class 1 single-phase watt-hour meter in IEC61036. It is a long life meter with the advantage of high stability, high overload capability, low power loss, and small volume.

Model

DRS-205A/D

Display Type

Digital

Operating temperature

-25°C – +55°C

Operational voltage

195-253V AC

Output Voltage

110V,127V,133V,230V,240V

Item Name

Kwh Meter Digital

Nominal voltage (Un)

230V AC

Measuring Energy

0-999999.99 kWh

Price range: $5.00 – $20, Stock: More than 1000pcs.

Production Process

Professional production of electrical products, as circuit breakers, mould case circuit breakers, contactors, which supporting copper and iron parts, monthly output of 550,000 sets; Have all kinds of stamping die design self-made ability. Products: conductive system, static contact, iron parts, packaging parts.

Technological process: materials→Molding→screw tap→electroplate→electro welding→riveting→testing→packing

Details about single phase analog and digital LCD display wireless kwh energy meter

(Last Updated On: 2020年11月23日)

General:

The meter is designed to measure single-phase two-wire AC active energy. The meter complies with the relative technical requirements for the class 1 single-phase watt-hour meter in IEC61036. It is a long life meter with the advantage of high stability, high overload capability, low power loss, and small volume.



Technical Data

Meter type DRS-205A/D (LCD display)
Digit length 5+2/6+1
Nominal voltage(Un) 110V/127V/133V AC
230/240V AC(option)
Operational voltage (-15% ~ +10%)Un
Insulation capabilities – AC voltage withstand 2KV for 1 minute
– Impulse voltage withstand 6KV – 1.2µS waveform
Rated current (Ib) 5A
Maximum rated current (Imax) 32A/45(option)
Operational current range 0.4% Ib- Imax
Overcurrent withstand 30Imax for 0.01s
Operational frequency range 50/60Hz ±10%
Internal power consumption ≤2W / 10VA
Test output flash rate (RED LED) 1000/2000imp/kWh
Pulse output rate (pins 20 & 21 1000/2000imp/kWh
Consumption indicator (RED LED) Flashing at load running
Datastore The data can be stored for more than 25 years without power

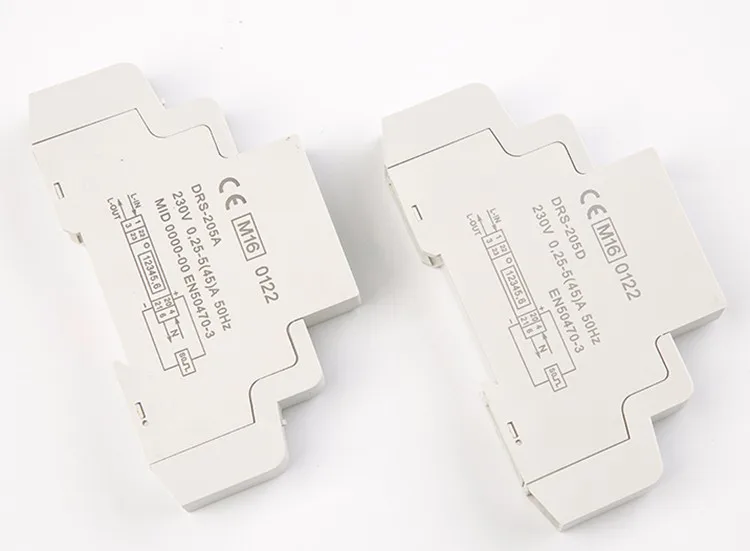

DRS-205 Serial MID Approved single phase analog and digital LCD display wireless kwh meter energy meter

DRS-205 Serial MID Approved single phase analog and digital LCD display wireless kwh meter energy meter

DRS-205 Serial MID Approved single phase analog and digital LCD display wireless kwh meter energy meter
